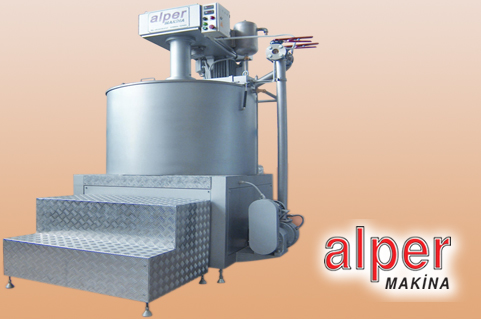

Ball-mill is batch type refiner for processing cream, natural and palm based chocolates and similar products.
Ball mill tank is double jacketed and heated by electrical resistances. Inner and outer jacket , agitators and balls are stainless steel.
System also includes thermostatically controlled heating system .
The chocolate pump which is used for circulation is also used for discharging. Process time is depends on raw material fineness . Process takes approximately 2½ hours.
|CAPACITY (2.5-3 hours)||250 kg||500 kg||1000 kg|
|TOTAL INSTALLED POWER||16 kw||21 kw||25 kw|
|WEİGHT||800 kg||1000 kg||1400 kg|
